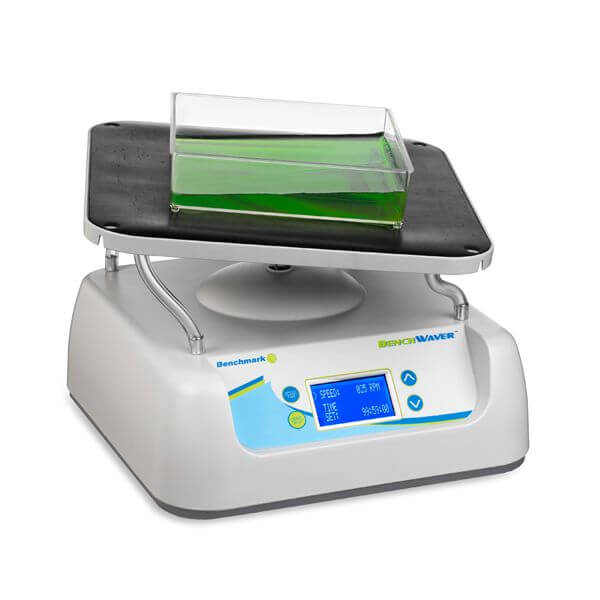

The Benchmark Scientific BenchWaver B3D5000 is a laboratory 3D rocker designed for gentle to vigorous mixing, washing, staining, and sample agitation. It combines conventional rocking motion with an orbital component to produce a three-dimensional undulating movement. This motion is useful for applications requiring consistent liquid movement across samples without the more aggressive mixing associated with some other shaker types.

Benchmark Scientific, Inc.

The instrument features a large platform with a non-slip mat, a digital LCD control panel, and adjustable rocking speed and tilt angle. Its control system allows users to select operating conditions according to the requirements of their laboratory procedures. The tilt angle can be adjusted without tools, making it convenient to switch between different mixing intensities.

The BenchWaver offers a variable speed range of 5–105 rpm and a tilt angle adjustable from 0° to ±10°. Combining these adjustments allows researchers to select gentle movement for delicate samples or more vigorous agitation for applications requiring greater liquid circulation. The unit also includes a timer that can be set for 1 minute to 99 hours or continuous operation.

benchmarkscientific.com

Its 13.5 × 13-inch platform provides a working surface for suitable laboratory trays, staining containers, flasks, and other vessels. The supplied flat mat helps prevent containers from slipping during operation. Optional accessories, including a stacking platform and a dimpled mat, can expand its versatility when compatible with the instrument configuration.

The BenchWaver is suitable for molecular biology laboratories, biotechnology research facilities, pharmaceutical laboratories, academic institutions, and other scientific environments. Typical uses include gel staining and destaining, blot washing, membrane processing, general reagent mixing, and laboratory sample agitation. The gentle undulating movement can be useful when samples require continuous contact with a solution without intense mechanical disturbance.

benchmarkscientific.com

The instrument is designed for use in compatible refrigerated and incubated environments. Published specifications list an operating temperature range extending from approximately +2°C to +60°C, although the precise permitted range should be checked against the applicable manual and unit configuration. This flexibility can support workflows performed under controlled temperature conditions.

With its adjustable motion, digital controls, and generous platform area, the BenchWaver is a versatile addition to laboratories that perform routine mixing and washing procedures. Before purchasing a used or refurbished unit, buyers should verify the motor operation, LCD display, speed adjustment, tilt mechanism, platform condition, and included accessories.

2.2 Applications of the Product

Gel staining and destaining: Provides gentle movement of staining and destaining solutions across gels.
Western blotting: Supports washing and incubation steps during compatible blotting workflows.
Molecular biology: Facilitates mixing and agitation of samples and reagents.
Biotechnology research: Supports routine laboratory mixing and sample processing.
Pharmaceutical research: Provides agitation for appropriate laboratory procedures.
Membrane washing: Helps maintain solution movement during washing steps.
General laboratory mixing: Suitable for compatible trays, dishes, and vessels.
Temperature-controlled experiments: Can be used in compatible cold rooms and incubators within the specified temperature range.

2.3 Features of the Product

Three-dimensional undulating rocking motion.
Adjustable speed from 5 to 105 rpm.
Adjustable tilt from 0° to ±10°.
Digital LCD control panel.
Programmable timer from 1 minute to 99 hours, or continuous operation.
Large 13.5 × 13-inch platform.
Non-slip flat mat platform.
Tool-free tilt adjustment.
Maximum load capacity of 9 kg.
Optional stacking platform for increased working capacity.
Optional dimpled mat for suitable tubes and containers.
Suitable for compatible cold-room and incubator environments.

Benchmark Scientific, Inc.

2.4 Technical Specifications

Specification	Details
Manufacturer	Benchmark Scientific
Product name	BenchWaver™ 3D Rocker
Model number	B3D5000
Product type	Laboratory 3D rocker / undulating shaker
Motion	Three-dimensional undulating motion
Speed range	5–105 rpm
Tilt angle	Adjustable, 0° to ±10°
Platform size	13.5 × 13 inches (34 × 33 cm)
Maximum load capacity	9 kg (20 lb)
Timer	1 minute to 99 hours or continuous
Display	Digital LCD
Operating temperature	Approximately +2°C to +60°C, subject to manual/configuration
Dimensions (W × D × H)	Approximately 33 × 34 × 24.75 cm
Weight	Approximately 5.5 kg
Electrical supply	100–240 V AC, 50–60 Hz
Power consumption	50 W
Standard platform	Flat mat platform
Optional accessories	Stacking platform and dimpled mat
Condition	To be confirmed

Benchmark Scientific, Inc.

2.5 Product Condition

Select the appropriate condition before publishing:

Refurbished: Professionally inspected, serviced as required, and functionally tested.
Used: Pre-owned equipment sold in its existing condition.
Brand new: Unused equipment with new-product status verified.

The photograph does not confirm the operational condition or the complete set of supplied accessories.
