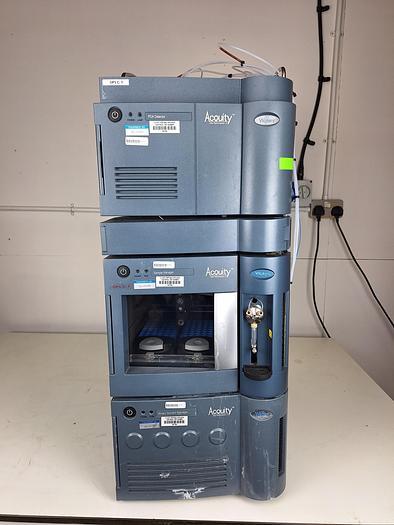

The photograph shows a stacked Waters ACQUITY UPLC (Ultra Performance Liquid Chromatography) system. The visible labels identify a PDA Detector and a Sample Manager – FTN, along with a lower module labelled Binary Solvent Manager. This is a modular analytical chromatography system used to separate and analyse components in liquid samples.

The system is particularly useful for analytical methods that require high-resolution chromatographic separation and UV-visible spectral detection. In a typical workflow, the solvent management module delivers the mobile phase, the Sample Manager – FTN introduces measured sample volumes into the flow path, the chromatographic column separates the sample components, and the PDA detector records their absorbance spectra. The resulting chromatograms and spectra can be processed using compatible chromatography software.

Waters

2.2. Applications of the product

Pharmaceutical analysis: Assay testing, impurity profiling, and method development.
Quality control: Chromatographic analysis of raw materials and finished products.
Chemical analysis: Separation and identification of suitable compounds.
Biotechnology research: Analysis of compatible biomolecules and research samples.
Food and beverage testing: Measurement of suitable components using validated methods.
Environmental analysis: Analysis of compatible environmental samples.
Research and development: Method development, separation optimisation, and spectral evaluation.
Stability studies: Analysis of samples from appropriate pharmaceutical stability protocols.
UV-visible spectral analysis: Collecting wavelength-dependent absorbance information for chromatographic peaks.

Applications depend on the installed modules, column, software, detector configuration, and validated analytical method.

2.3. Product features

Modular Waters ACQUITY UPLC configuration.
PDA detector for UV-visible spectral acquisition.
Sample Manager – FTN for automated sample injection.
Binary Solvent Manager for high-pressure mobile-phase delivery and gradient formation.
Designed for high-performance chromatographic separations.
PDA spectral acquisition for compound characterisation and impurity investigation.
Software-controlled operation with compatible Waters chromatography software.
Suitable for pharmaceutical, chemical, biotechnology, and research laboratories.
Supports integration of separation and spectral detection in one analytical workflow.

2.4. Technical specifications

Specification	Details
Brand	Waters
Product family	ACQUITY UPLC
System type	Ultra Performance Liquid Chromatography system
Detector	ACQUITY UPLC PDA Detector
Autosampler	Sample Manager – FTN
Solvent delivery	Binary Solvent Manager, as labelled
PDA wavelength range	190–500 nm
PDA wavelength accuracy	±1 nm
PDA optical resolution	1.2 nm
PDA sampling rate	Up to 80 points/second
PDA analytical flow-cell volume	500 nL
PDA analytical flow-cell path length	10 mm
Solvent mixing	High-pressure binary gradient, subject to module configuration
Maximum system pressure	Depends on the installed solvent manager and system configuration
Sample injection range	Depends on the exact Sample Manager – FTN version
Software	Compatible Waters chromatography software; version to be confirmed
Column management	Installed configuration to be confirmed
Power requirements	Verify individual module rating plates
Condition	Used; operational status to be verified

The PDA specifications above are from Waters’ published documentation. They do not establish the condition or exact configuration of the pictured system.

Waters UPLC system

Waters ACQUITY UPLC System with PDA Detector
